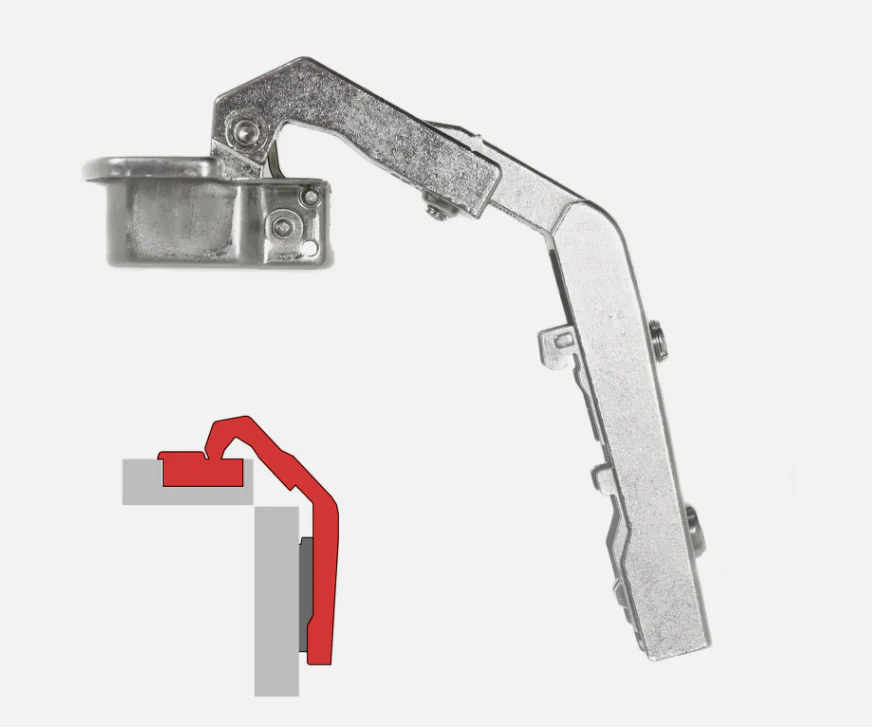

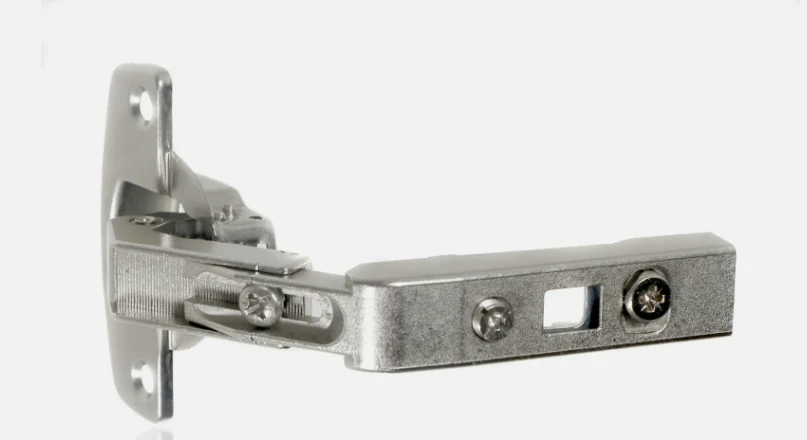

Genuine Original Hettich Universal Hinge For Corner Cabinet Folding Doors Without Self Closing Feature (Intermat 9930, Nickel Plated, Overlay, Opening Angle 50° / 65°, Drilling Pattern Th 52mm x 5.5mm, For Screwing On

HETTICH Genuine Hinge for corner cabinet folding doors without self closing feature (Intermat 9930), Nickel plated, overlay, Opening angle 50 degree / 65 degree TH-Drilling pattern 52 x 5.5 mm, for pressing in (ø 10 x 11)

Product Details:
Hinge for corner cabinet folding doors
Without self-closing feature (Intermat 9930)
Opening angle 50 degree / 65 degree
For door thickness 15 - 21 mm
Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for pressing in
Integrated diagonal adjustment +9.5 mm / -9.5 mm
Wood framed door (profile width from 50 mm)
Base: 24 mm
Cup diameter: 35 mm
Integrated overlay adjustment: +2 mm / -2 mm
Stay closed function: Yes
